SOS Butterworth filters in Rust¶
2025-11-30
I recently contributed a second-order sections (SOS) filter implementation to flaw, a digital filtering library for Rust.
It targets both embedded platforms (f32, no-std, no-panic) and general-purpose platforms (f64, FMA hardware acceleration).
My new flaw::sos module provides:
- Implementation of cascaded second-order sections:
sos::SisoSosFilter- Generic over float type (
f32,f64) and number of sections (filter order is up to 2x sections) - Designed for efficiency and low numerical error:
- Update uses 9 float operations per section
- Storage is 7 floats per section (2 delays + 5 coefficients)
- Each stage uses Transposed Direct Form II
- FMA and non-FMA implementations, configured by the crate's existing
fmafeature
- Generic over float type (
- Functions to generate SOS Butterworth low-pass filters for a given cutoff frequency:
sos::{butter2,butter4,butter6}- Provides orders 2, 4, and 6 for
f32andf64 - SOS coefficients are interpolated vs cutoff frequency from a lookup table
- Cutoff frequency region of validity is enforced and tested for each combination of filter order and float type
- Provides orders 2, 4, and 6 for
- Python script to auto-generate the SOS Butterworth lookup tables from SciPy:
scripts/generate_butter_sos_tables.py
Example usage:
// Create a low-pass filter with (cutoff frequency) / (sample frequency) = 0.01
// Butterworth order 4 filter implemented with second-order sections
let mut filter = flaw::sos::butter4::<f32>(0.01)?;
loop {
let u = 1.0; // get the next raw measurement
let y = filter.update(u); // update the filter and get its next output
}
Below are my reflections on the project. Thanks to flaw's maintainer, James Logan, for helping me with this!
Digital filters with f32 are numerically challenging¶
One target of flaw is embedded platforms where 64-bit float operations are slow or unavailable.
Thus, flaw::sos needs to support filters using f32.
The resolution of f32 is only ~7 decimal digits.
A f32-based filter will have rounding errors if it adds together numbers more than a few orders of magnitude apart.

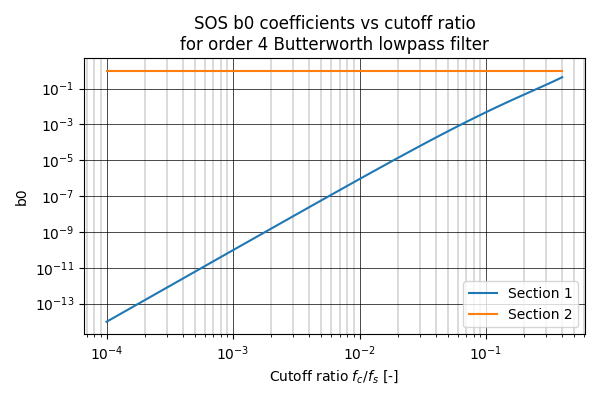

Unfortunately, infinite impulse response (IIR) digital filters can have a large range of coefficient magnitudes, particularly at low cutoff ratio (cutoff frequency / sample frequency) for low-pass filters.
An SOS form was chosen to improve numerical issues. The same digital filter can be realized in different forms, and these have different robustness to numerical issues. Common forms include:
- The four direct forms: Direct I, Direct II, Transposed Direct I, and Transposed Direct II (math reference)
- Transposed Direct II is most numerically robust
- All are susceptible to numerical instabilities, particularly for higher-order filters
- State space (math reference)
- A modified state space form was used in the existing
flaw::SisoIirFilter
- A modified state space form was used in the existing
- Cascaded second-order sections (SOS) (math reference)
The SOS form is more numerically robust for filters of order > 2.
SOS divides a higher-order filter into a cascade of second-order sections.
Within each section, it tends to add values of similar magnitude, reducing rounding errors.
In flaw::sos::SisoSosFilter, each section is realized in the numericall-robust Transposed Direct II form.
Even with SOS, low-pass Butterworth filters have numerical problems for cutoff ratios that are too low.
flaw::sos's butter methods protect users from creating bad filters by returning Err if cutoff_ratio is below a minimum value.
The minimum values are tabulated for each combination of filter order and float precision.
Tests ensure that each filter has a DC gain of 1.0 ± 1e-4 at the minimum cutoff ratio (numerical issues manifest as the DC gain departs from 1).
Interpolating SOS coefficients for fast filter creation¶
In one case, users need to quickly create a new filter with a different cutoff frequency on an embedded platform.
The filter design algorithms are complicated and would not run in the allotted time.

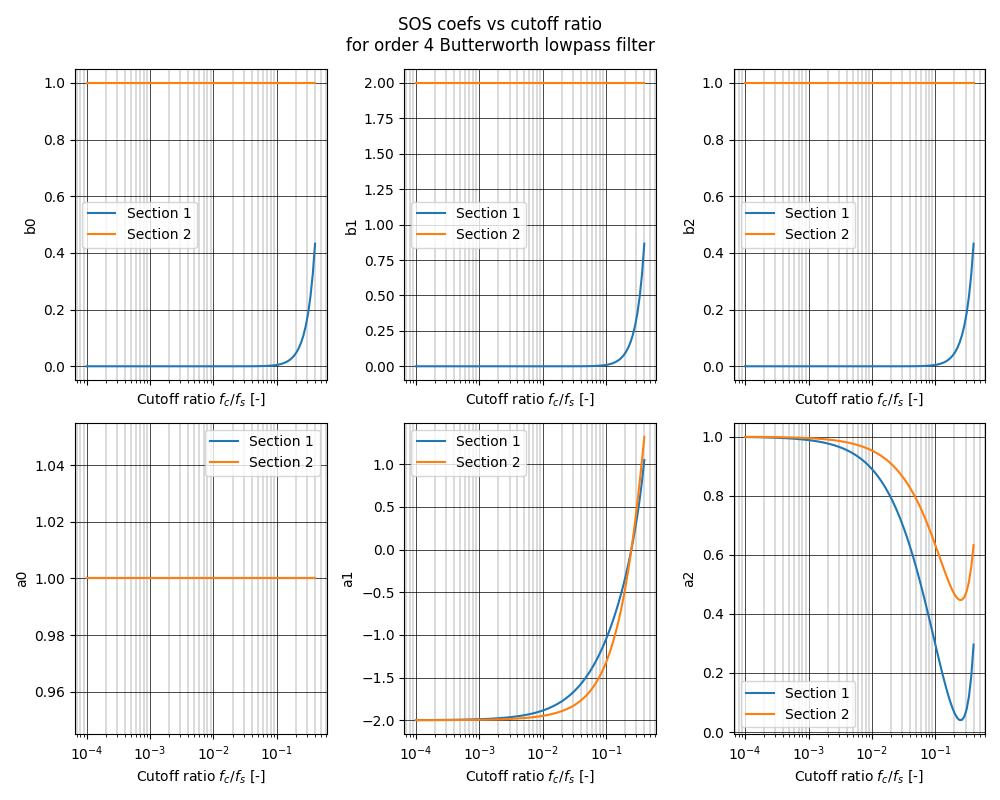

Instead, flaw stores lookup tables of the filter coefficients, and interpolates them versus cutoff frequency when creating a new filter.
The flaw maintainer (James) developed this approach, and I extended it to SOS filters.
To generate the lookup tables, a Python script calls scipy.signal.butter to calculate the SOS coefficients, and then writes them to a .rs file as a static array. This happens once, before the crate is published.
At compile time, the lookup tables are compiled into the Rust binary.
If link-time optimization is enabled, the user's binary will only contain the lookup table(s) their code actually uses.
Steady state (DC) gain formula¶
For a second-order section with z-transform of
the section's DC gain is
For a cascaded SOS filter, the overall gain is the product of the section gains.
Uses: Gain correction after coefficient interpolation¶
*In SisoSosFilter::new_interpolated, this formula is used to correct the DC gain to 1.
A DC gain of 1 is vital:
e.g., in a measurement application, if the input is constantly and exactly 1.000 volt, the filter output should converge to 1.000 V, not 0.999 V or 1.001 V.
Each set of SOS coefficients in the lookup tables was designed for DC gain of 1, but interpolated coefficients may give a slightly-off-one DC gain.
After interpolation, new_interpolated calculates the DC gain of the overall filter, calculates a correction factor
and scales the numerator of each section by correction.
This ensures the overall DC gain is 1 to within 1e-6.
Note that, although the overall DC gain should be 1, the DC gain of each section is often not 1.
Uses: Set the filter to steady state¶
In SisoSosFiler::set_steady_state, the DC gain formula is used to set the internal state of the filter to its steady-state value for a given input.
This is useful in initializing the filter.
First, set_steady_state uses each section's steady state gain to calculate what the section output would be in steady state: output = input * ss_gain.
With both the input and output known, the section's state can be set using the usual update equations:
// Set the internal states based on the steady state input and output of this section
self.z[s][1] = b2 * input - a2 * output;
self.z[s][0] = b1 * input - a1 * output + self.z[s][1];
Derivation of DC gain¶
The filter's DC gain is its z-transform evaluated at z = 1. The DC gain is the final value of filter's the step response. Let H(z) be the z-transform of a second-order section. The z-transform of the section's step response is:
The final value theorem for z-transforms states:
Applying this to the step response gives:
The limit of the first term is 1, so we have:
$$ \lim_{n \rightarrow \infty} y[n] = H(1) $$ assuming that H(z) is stable so the limit exists. See the list of z-transform properties for more information.
Benchmarking and performance tricks¶
I also wanted to make filter updates fast on a general-purpose CPU with f64.
Before attempting performance optimization, I set up benchmarking to measure if my changes actually helped.
This was easy with criterion.
Criterion tracks benchmark statistics and reports if a code change had a statistically significant impact on runtime.
The performance tricks I tried and their effects:
- Using fused-multiply-add (FMA) instructions: ~40% speedup
- Requires setting the
target-cpu=x86-64-v3rustc flag to actually get the hardware acceleration.
- Requires setting the
- Unrolling the loop over sections: ~5% speedup
- Memory-aligning the arrays for coefficient and state storage: no measurable effect
- Despite no effect on my i7 CPU, I kept this in, as it may help on embedded platforms with less sophisticated memory controllers
To support a range of platforms, the FMA implementation is gated by a feature flag. If the fma feature is not set, the non-FMA implementation is used (code snippet below, and on GitHub).
The FMA-or-not choice happens at compile time, so there is no performance hit due to added branches.
#[cfg(not(feature = "fma"))]
{
// Direct Form II Transposed implementation
output = b0 * input + self.z[s][0];
// Update the filter delays, they will be used the next time this function is called
self.z[s][0] = b1 * input - a1 * output + self.z[s][1];
self.z[s][1] = b2 * input - a2 * output;
}
// The FMA implementation is ~40% faster, with target-cpu=x86-64-v3 on a i7-8550U CPU.
#[cfg(feature = "fma")]
{
// Direct Form II Transposed implementation
output = b0.mul_add(input, self.z[s][0]); // b0 * input + self.z[s][0]
// Update the filter delays, they will be used the next time this function is called
self.z[s][0] = b1.mul_add(input, a1.mul_add(-output, self.z[s][1])); // b1 * input - a1 * output + self.z[s][1]
self.z[s][1] = b2.mul_add(input, -a2 * output); // b2 * input - a2 * output
}
Using AI in a new domain: coach, not substitute¶
Effective and ineffective strategies I've seen for using AI assistants in a new-to-me domain:
- Don't: ask AI to write everything for me
- Removes my learning, and I don't yet know enough to tell if the results are bad
- Do: Design and write the code myself, ask AI for explanations to get unstuck faster
- I spend more time learning and less time looking for information
On this project, I used Codex a lot, but almost exclusively in "chat" mode, not "agent" mode. It was my first time extensively using generics in Rust and I often ran into compiler errors I didn't yet understand. I found it helpful to give Codex prompts like:
At line {X} in src/{Y}.rs, I'm trying to do {A}. I'm getting rustc error {Z}. Explain why this is happening and some options to resolve it.
This usually got me un-stuck in a few minutes.
I felt I could trust its answers because it was easy to check their correctness with rustc.
When learning C++ early in my career, each error like this was a long and frustrating quest -- but no more! The combination of Rust's helpful error messages, Rust's strong compile-time checks, and AI explanations is really helpful for learning.
When I was writing the math logic, Copilot eagerly suggested formula completions. Some of these were correct. AI is not a substitute for learning the domain, nor is it a substitute for good tests.
